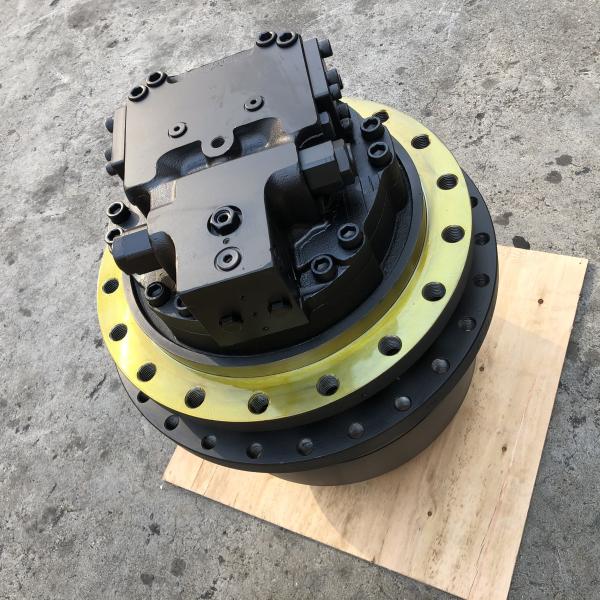

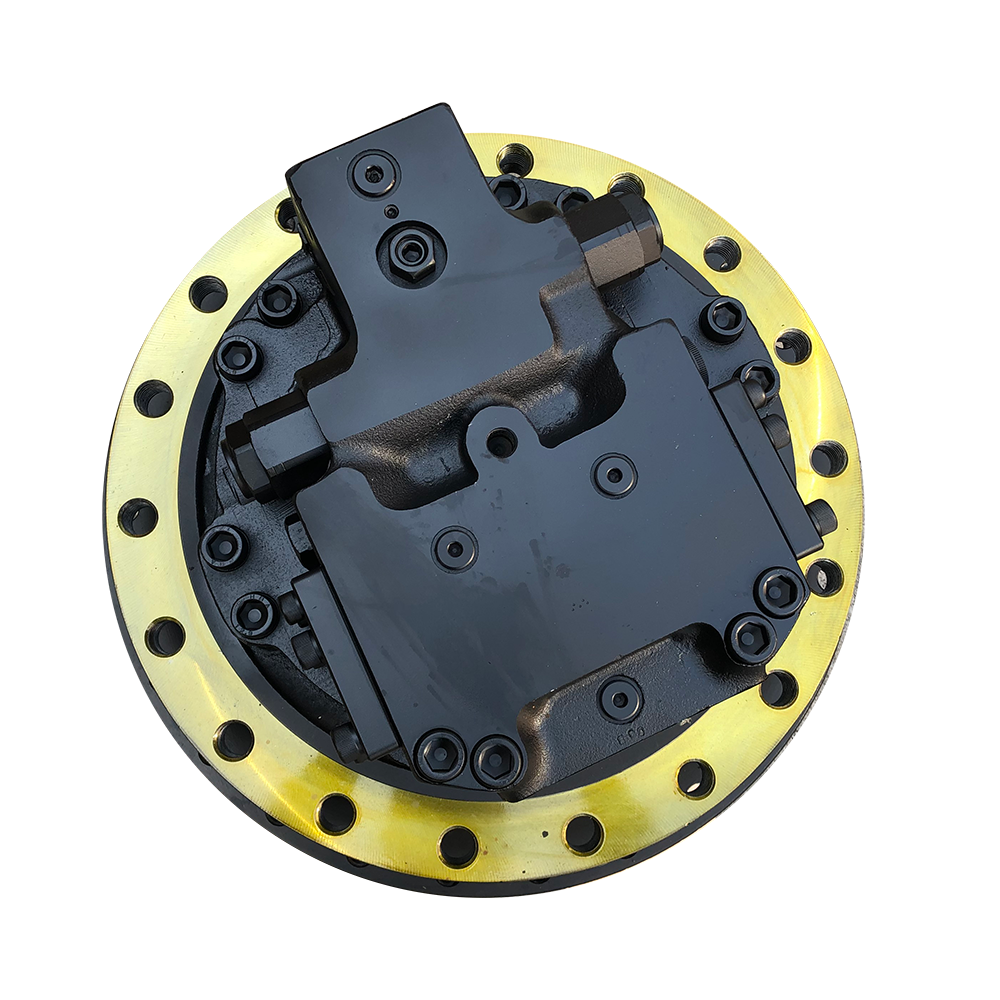

R320LC-7 R320LC-7A final drive assembly Belparts Excavator 31N9-40010 31N9-40030BG 31Q9-40030 travel motor for hyundai
Product description
Appliion:Excavator
Part name:Travel motor ass'y
Material:Steel
Model:R320LC-7 R320LC-7A
MOQ:1PC
Warranty:6 months
Payment term:T/T, paypal, trade assurance or as required
Part number:31N9-40010 31N9-40030BG 31Q9-40030
Shipment:by sea, by air, by express or as required
| Appliion | Excavator |
| Part name | Travel motor ass'y |
| Material | Steel |
| Model | R320LC-7 R320LC-7A |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, paypal, trade assurance or as required |
| Part number | 31N9-40010 31N9-40030BG 31Q9-40030 |
| Shipment | by sea, by air, by express or as required |

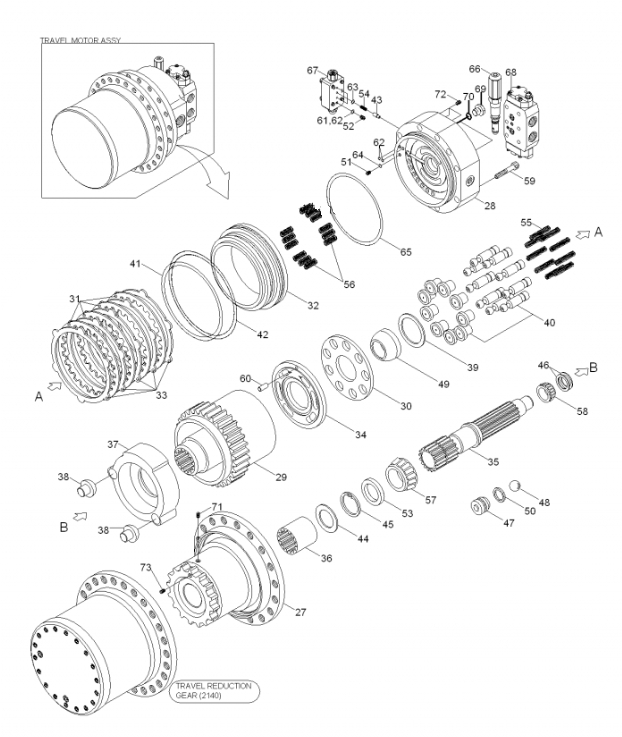

| # | Part No | Part Name | Qty. | Price request |
| * | 31N9-40010 | TRACK MOTOR | 1 | |
| *-1 | XJCK-00123 | TRAVEL MOTOR UNIT | 1 | |
| *-1 | XJCK-00139 | TRAVEL MOTOR UNIT | 1 | |
| 27 | XJCK-00045 | CASING | 1 | |
| 28 | XJCK-00122 | COVER-REAR | 1 | |
| 29 | XJCK-00121 | BLOCK-CYLINDER | 1 | |
| 30 | XJCK-00042 | RETAINER-SHOE | 1 | |
| 31 | XJCK-00041 | PLATE-FRICTION | 4 | |
| 32 | XJCK-00040 | PISTON-BRAKE | 1 | |
| 33 | XJCK-00039 | PLATE-SEPARATING | 5 | |
| 34 | XJCK-00120 | PLATE-VALVE | 1 | |
| 35 | XJCK-00037 | SHAFT | 1 | |
| 36 | XJCK-00036 | COUPLING | 1 | |
| N37 | XJCK-00035 | PLATE-SWASH | 1 | |
| N38 | XJCK-00034 | PIVOT | 2 | |
| 39 | XJCK-00077 | HOLDER-SPRING | 1 | |
| 40 | XJCK-00119 | PISTON ASSY | 9 | |
| 41 | XJCK-00031 | D-RING | 1 | |
| 42 | XJCK-00030 | D-RING | 1 | |
| 43 | XJCK-00029 | VALVE-CHECK | 3 | |
| 44 | XJCK-00028 | RING-RETAINER | 1 | |
| 45 | XJCK-00027 | RING-RETAINER | 1 | |
| N46 | XJCK-00026 | SHIM | 1 | |
| 47 | XJCK-00025 | PISTON | 1 | |
| 48 | XJCK-00024 | BALL | 1 | |
| 49 | XJCK-00023 | JOINT-BALL | 1 | |
| 50 | XJCK-00022 | SEAL-PISTON | 1 | |
| 51 | XJCK-00021 | RESTRICTOR | 1 | |
| 52 | XJCK-00020 | RESTRICTOR | 1 | |
| 53 | XJCK-00019 | SEAL-OIL | 1 | |
| 54 | XJCK-00018 | SPRING-CHECK VLV | 3 | |
| 55 | XJCK-00017 | SPRING-CYLINDER | 9 | |
| 56 | XJCK-00016 | SPRING-BRAKE | 12 | |
| 57 | XJCK-00015 | BEARING | 1 | |
| 58 | XJCK-00014 | BEARING | 1 | |
| 59 | XJCK-00013 | SCREW-CAP | 10 | |
| 60 | XJCK-00012 | PIN-PARALLEL | 1 | |
| 61 | XJCK-00011 | O-RING | 3 | |
| 62 | XJCK-00010 | O-RING | 2 | |
| 63 | XJCK-00009 | O-RING | 3 | |
| 64 | XJCK-00008 | O-RING | 1 | |
| 65 | XJCK-00007 | O-RING | 1 | |
| 66 | XJCK-00137 | RELIEF VALVE | 2 | |
| 67 | XJCK-00005 | PILOT VALVE | 1 | |
| 68 | XJCK-00118 | VALVE-BRAKE | 1 | |
| 69 | XJCK-00003 | PLUG
2355-4-166188-0 | 2 | |
| 70 | XJCK-00001 | O-RING
0401-1000110-10 | 2 | |
| 71 | XJCK-00076 | PLUG-EXPANDER | 1 | |
| 72 | XJCK-00075 | PLUG | 4 | |
| 73 | XJCK-00074 | PLUG | 1 | |
| *-2 | XJCK-00136 | T/REDUCTION GEAR | 1 | |
